STL designed and installed a completely bespoke, fully electric Cyclone side-extract spraybooth for Penske Porsche in Germany.
The booth was installed on the first floor of the cosmetic repair facility. The project required a solution that could integrate into the existing building while providing the controlled environment needed for high-quality vehicle refinishing.
As a fully electric system, the Cyclone also provides an alternative to gas-fired heating. This forms part of STL’s wider approach to developing efficient, electrically powered spraybooth systems.
The installation presented several significant constraints. The available ceiling height was very low, while a large number of existing building services already occupied the space.
This left limited room for the ventilation system and created a complex route between the booth and the building’s existing infrastructure. Every part of the installation needed careful consideration before work could begin.
The challenge was not simply to make the system fit. The ventilation design also needed to support the booth’s performance while working around the existing services.
With so little room for adjustment once installation was underway, accurate planning was essential. The team needed to resolve the routing and identify potential clashes during the design stage rather than on site.
We used detailed 3D modelling of the building to plan the installation before work began. By modelling the available space and existing services, the team could assess different routing options and identify the optimum solution.
This approach allowed the ventilation system to follow a carefully planned route through the available space. It also reduced the risk of unexpected issues during installation and ensured the system could integrate cleanly with the existing building.
The finished Cyclone is fully electric and incorporates remote monitoring technology. This gives our team in the UK remote access to key system information, allowing software updates, performance monitoring and diagnostics to take place without the need for every issue to be addressed on site.
The completed installation provides Penske Porsche with a bespoke spraybooth designed specifically around the constraints of its facility.
What began as a challenging installation environment has resulted in a clean, integrated solution. Careful design and detailed planning allowed the finished system to sit naturally within the building, while maintaining the performance and functionality expected from a Cyclone spraybooth.

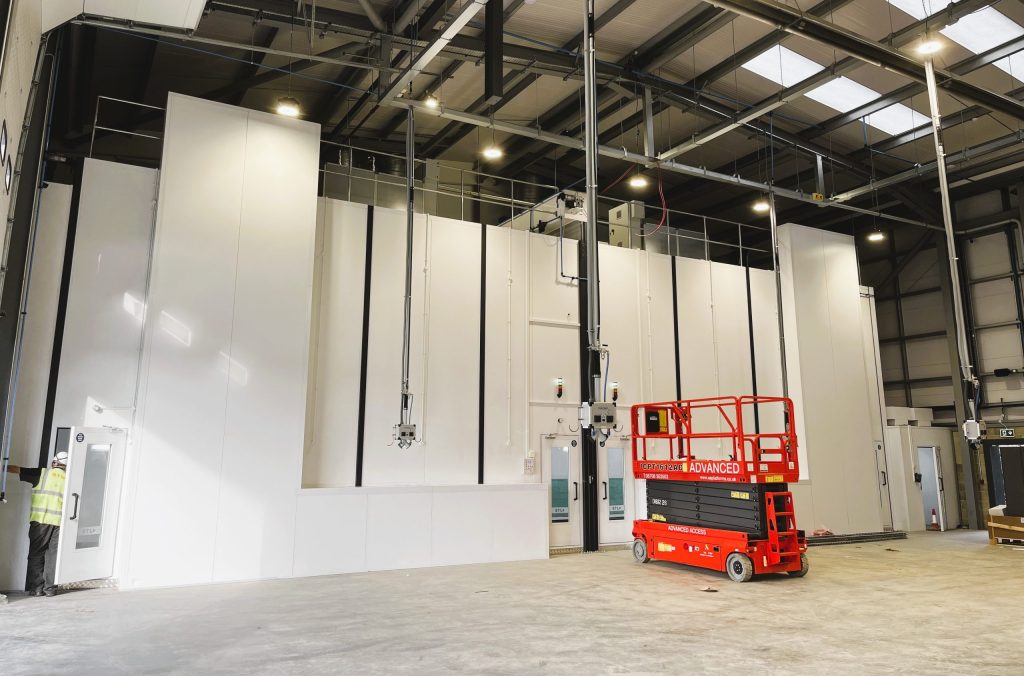

A large-scale aircraft hangar paint facility designed to accommodate A320 and B737 aircraft, featuring high-capacity airflow, heating, and humidification systems to maintain consistent conditions for precision spraying.

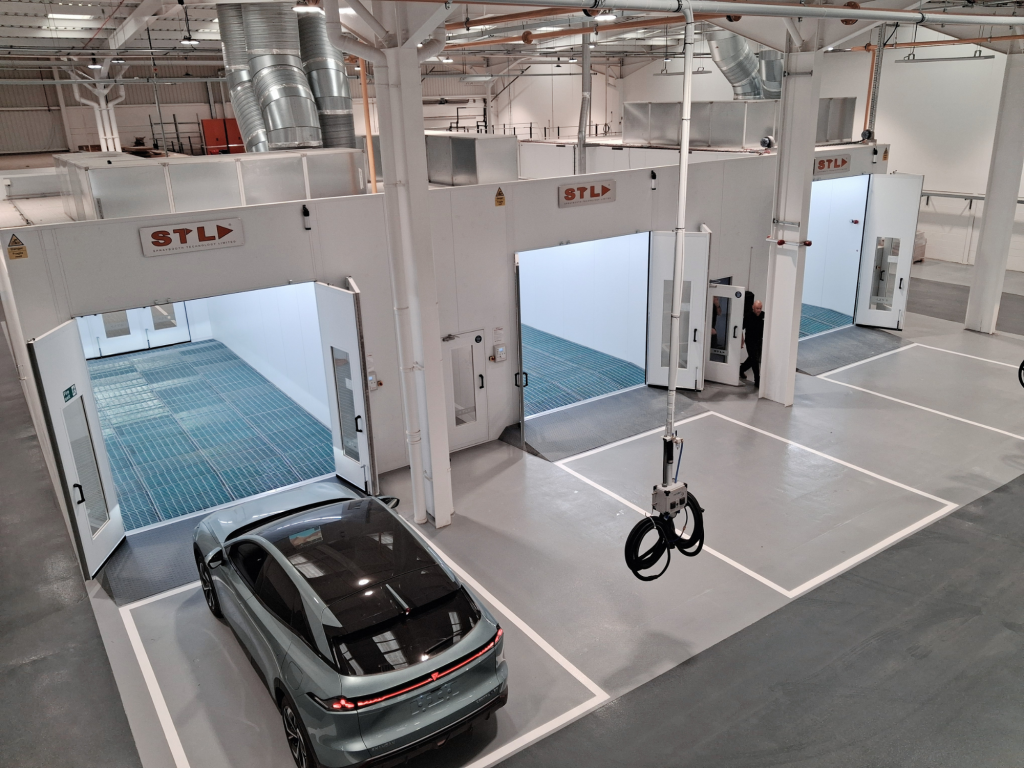

A bespoke automotive spraybooth facility delivered to support a client’s expansion into a new region. Completed as a turnkey project within a fast-track programme, the installation combines high-performance finishing systems with a fully integrated workspace designed for efficiency and flexibility.
A modern aircraft refinishing and training facility, combining large-scale spray operations with a controlled environment designed to meet stringent aviation standards. Our bespoke extraction system ensures consistent performance, reliability, and optimal working conditions.

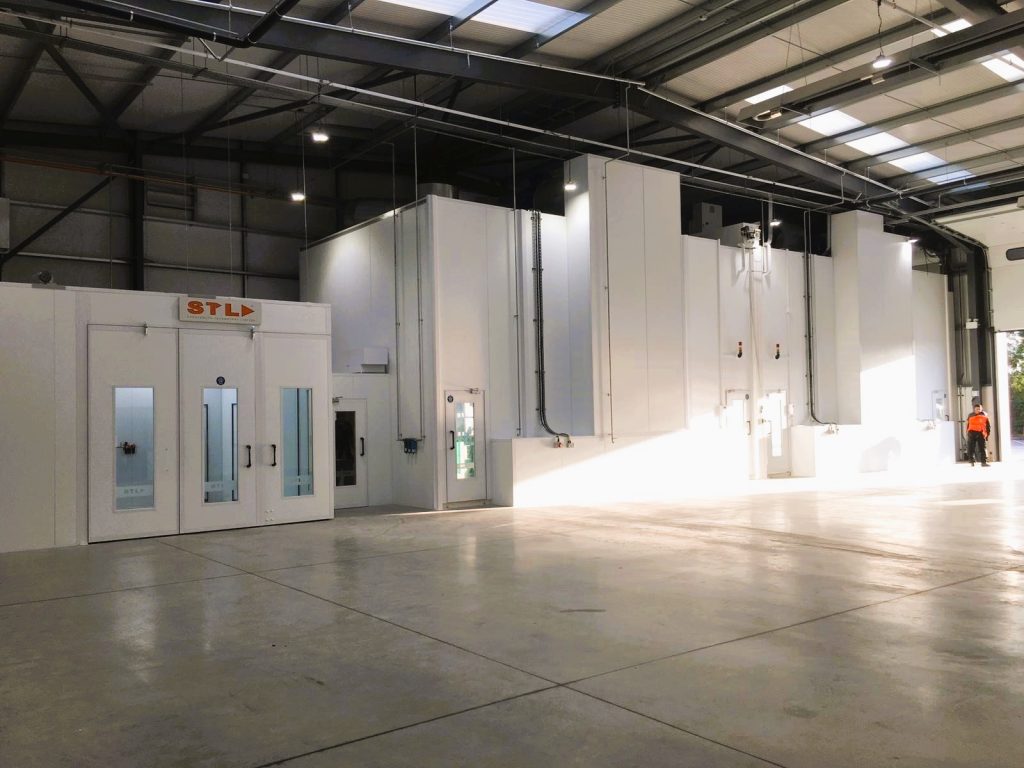

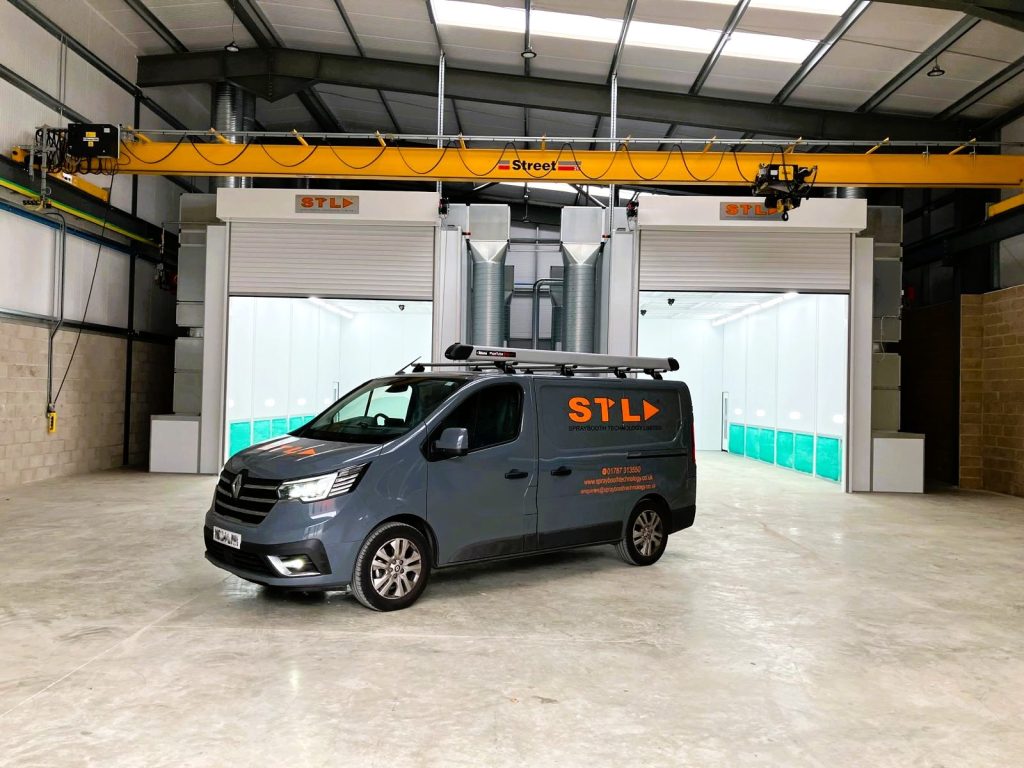

A versatile spraybooth facility engineered to accommodate everything from small vans to large trucks, supporting multiple jobs simultaneously while boosting productivity.
STL transformed an industrial paint training centre, installing a split spraybooth and interlinked training area to allow multiple sessions simultaneously. Hidden storage, brand-specific setups, and a future-ready mezzanine ensure flexibility and growth, giving the client a modern, functional facility that enhances both training outcomes and customer demonstrations.

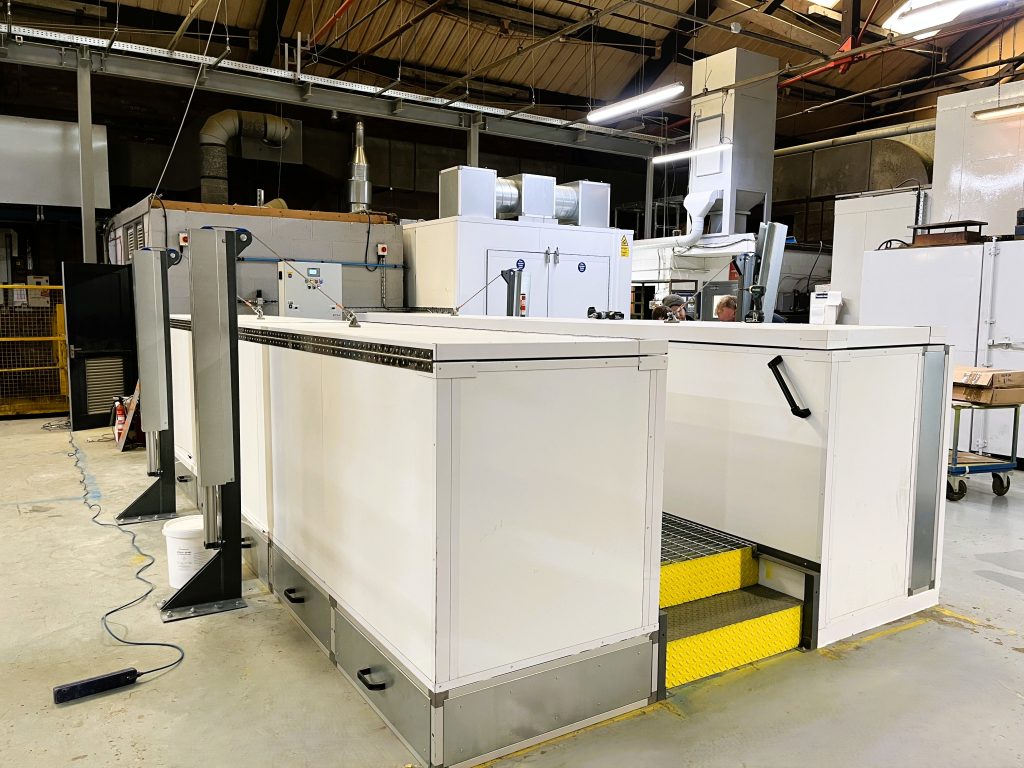

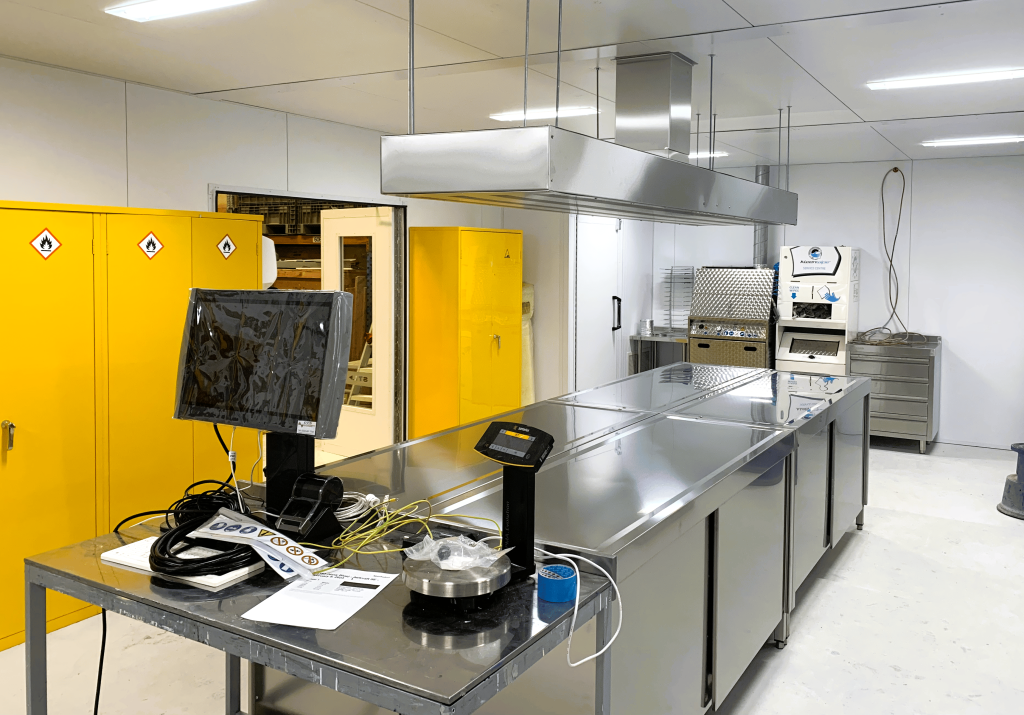

For a highly specialised NDT facility, STL delivered custom spraybooths, a vertical loading drying oven, and a developer dust storm coffin, all designed to meet exacting NADCAP standards. The upgrade improved production efficiency, supported new product development, and created a professional, visually appealing facility that doubles as a powerful client showcase.
